ST901
On/Off-Highway Drive
A tough traction tread for the most rugged logging and off-highway applications
6
YEAR
Warranty
- 6 Years from Original Purchase Date*
- 2 Recap Casing Warranty*

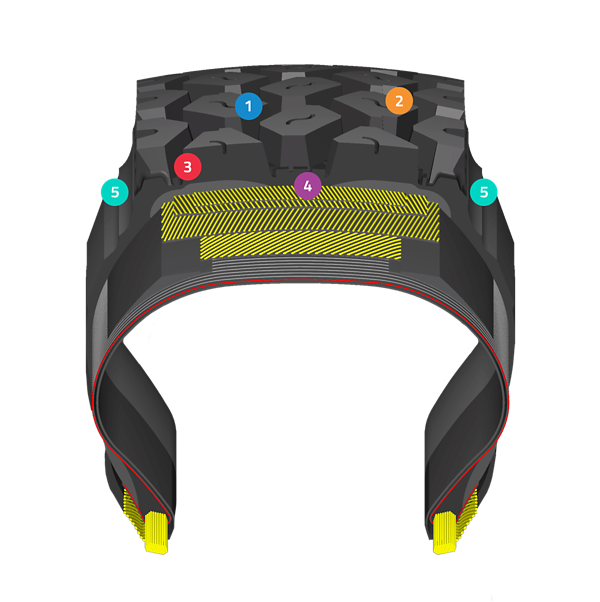

TIRE CONSTRUCTION
- Application-specific tread compounds resist tread chipping in high-scuff and off-road applications.
- Siping for increased traction.
- Stone ejectors protect the casing from damage in the base of the tread groove.
- Extra-thick layer of undertread rubber protects the belt package.
- Thick curbing ribs help shield the casing from sidewall damage.
Tire Specifications
Select a tire size below to get started
TIRE SIZE
Not sure which size to select?
FIND MY TIRE SIZE
FIND MY TIRE SIZE
Tire Specifications
11R24.5
Change Size
- SIZE 11R24.5
- PLY RATING 16
- SERVICE DESCRIPTION 149/146K
- MAX SPEED 68
- TREAD DEPTH 32
| PRODUCT CODE | SUMI-5531859 |
|---|---|
| TIRE SIZE | 11R24.5 |
| SERVICE DESCRIPTION | 149/146K |
| LOAD RANGE/PLY | H/16 |
| PREF. RIM WIDTH (INCH) | 8.25 |
| MIN. RIM WIDTH (INCH) | 7.50 |
| SINGLE MAX LOAD (LBS.) | 7160 |
| REVS PER MILE | 468 |
| DUAL MAX LOAD (LBS.) | 6610 |
|---|---|
| I.P. (PSI) | 120 |
| OVERALL DIAMETER (INCH) | 44.4 |
| SECTION WIDTH (INCH) | 11.1 |
| MIN. DUAL SPACING (INCH) | 12.6 |
| TREAD DEPTH (X/32") | 32 |
| STATIC LOADED RADIUS | 20.7 |
| MAX SPEED (MPH) | 68 |
